Mechanical Paper Bag Machine With Printing Online

Introduction:

RQJD-400/650/850 mechanical paper bag making machine with printing online connects the printing and bag making processes together, reducing the intermediate process of printing and rewinding the roll paper before making bags, improving production efficiency, and reducing labor costs. Generally, two-color, four-color, and six color printing can be connected.

Introduction:

RQJD-400/650/850 mechanical paper bag making machine with printing online connects the printing and bag making processes together, reducing the intermediate process of printing and rewinding the roll paper before making bags, improving production efficiency, and reducing labor costs. Generally, two-color, four-color, and six color printing can be connected.

Previous: Mechanical High Speed Paper Bag Making Machine

Next: RQD-400 Automatic High Speed Paper Bag Machine

SEND INQUIRY

Product Category

Film Blowing Machine

Plastic Bag Making Machine

Vest Bag

Side Seal Bag

Bottom Seal Bag

Bags On Roll

Paper Bag Making Machine

Printing Machine

Recycling Machine

Slitting Machine

Injection Machine

Product Features：

1. Suitable for all types of paper weighing 40-80gsm

2. Bag length adjustable via human-machine interface

3. Servo PLC controls bag length within a specified range

4. Precise color mark tracking system

5. Bag cutting with a toothed knife

6. Ink scraping with a closed-loop scraper system

7. Ceramic anilox roller for ink transfer, ensuring high dot reproduction at high speeds and clear screen printing depth.

Model	RQJD400	RQJD650	RQJD850
Bag Weight	40-80g/m2	40-80g/m2	40-80g/m2
Tube Length	160-450mm	200-650mm	200-850mm
Bag Width	80-250mm	80-300mm	80-350mm
Speed	100-400bags/min	100-400bags/min	100-400bags/min
Weight	2200kg	2400kg	2600kg
Max Paper Roll Width	800mm	900mm	1000mm
Power	4kw	4kw	4kw
Insert Size	20-120mm	20-120mm	20-120mm
Machine Size(L×W×H)	6280x1500x1800mm	6300x1600x1900mm	6500x1700x1900mm

Model	YT-800	YT-1000	YT-1100
Max Width Substrate	800mm	1000mm	1100mm
Max Printing Width	760mm	960mm	1060mm
Range Of Printing Length	228-1000mm	228-1000mm	228-1000mm
Printing Speed	5-100m/min	5-100m/min	5-100m/min
Register Precision	≤±0.20mm	≤±0.20mm	≤±0.20mm
Plate Thickness	2.28mm	2.28mm	2.28mm
Machine Size(LxWxH)	2000x2000x2300mm	2000x2200x2300mm	2000x2400x2300mm

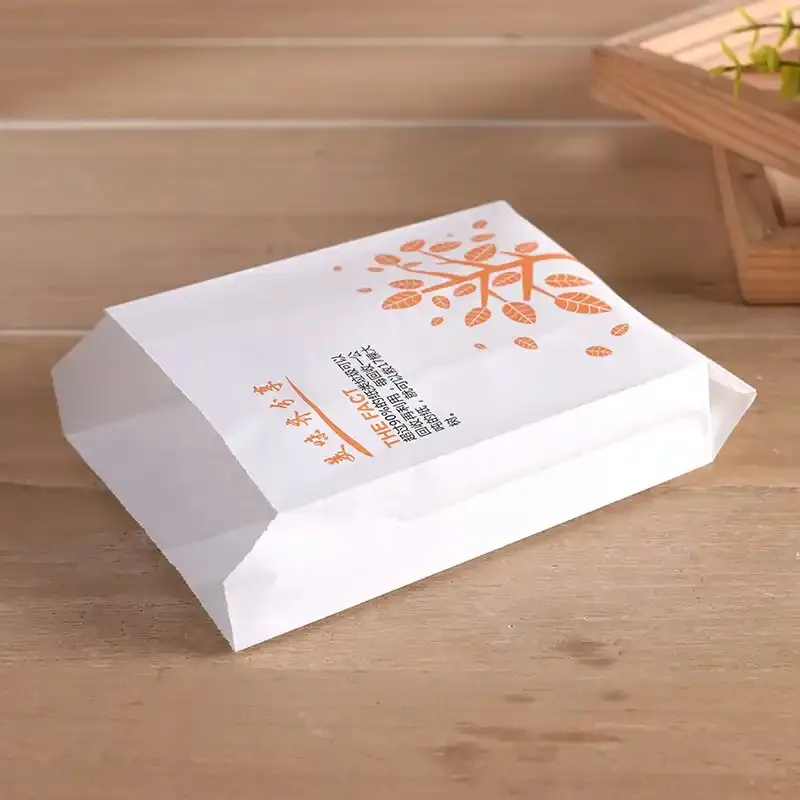

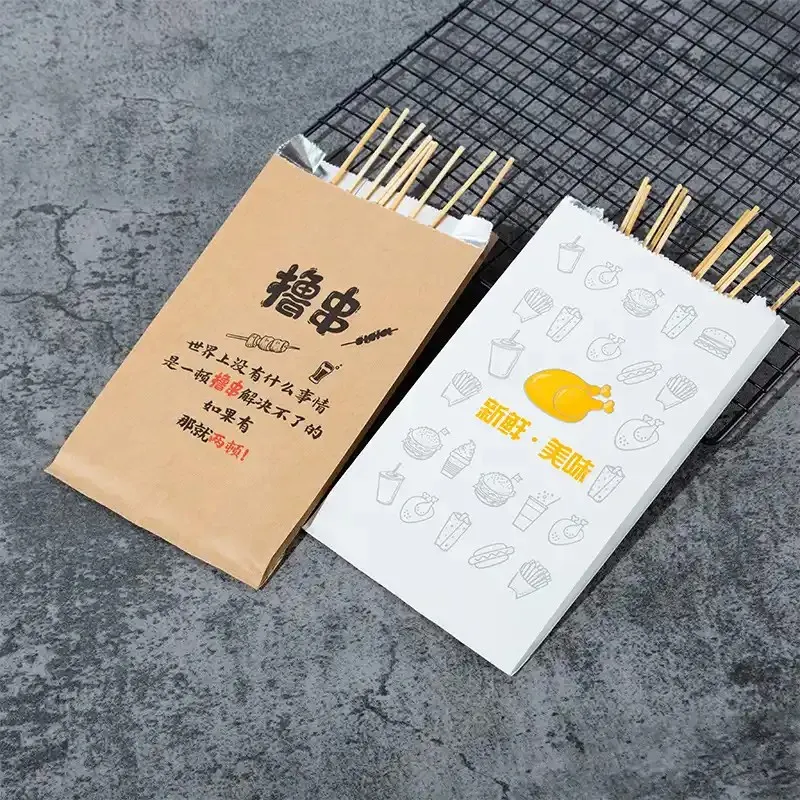

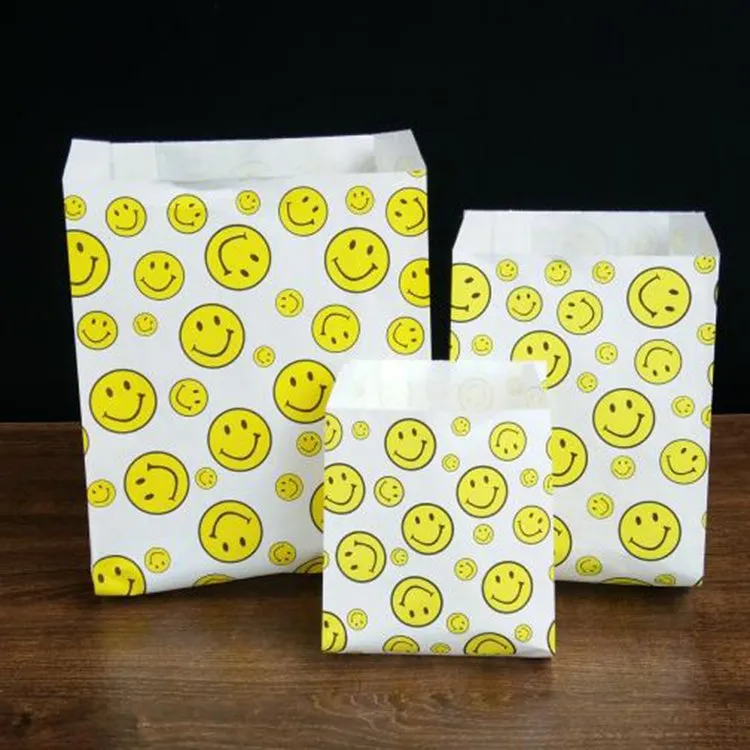

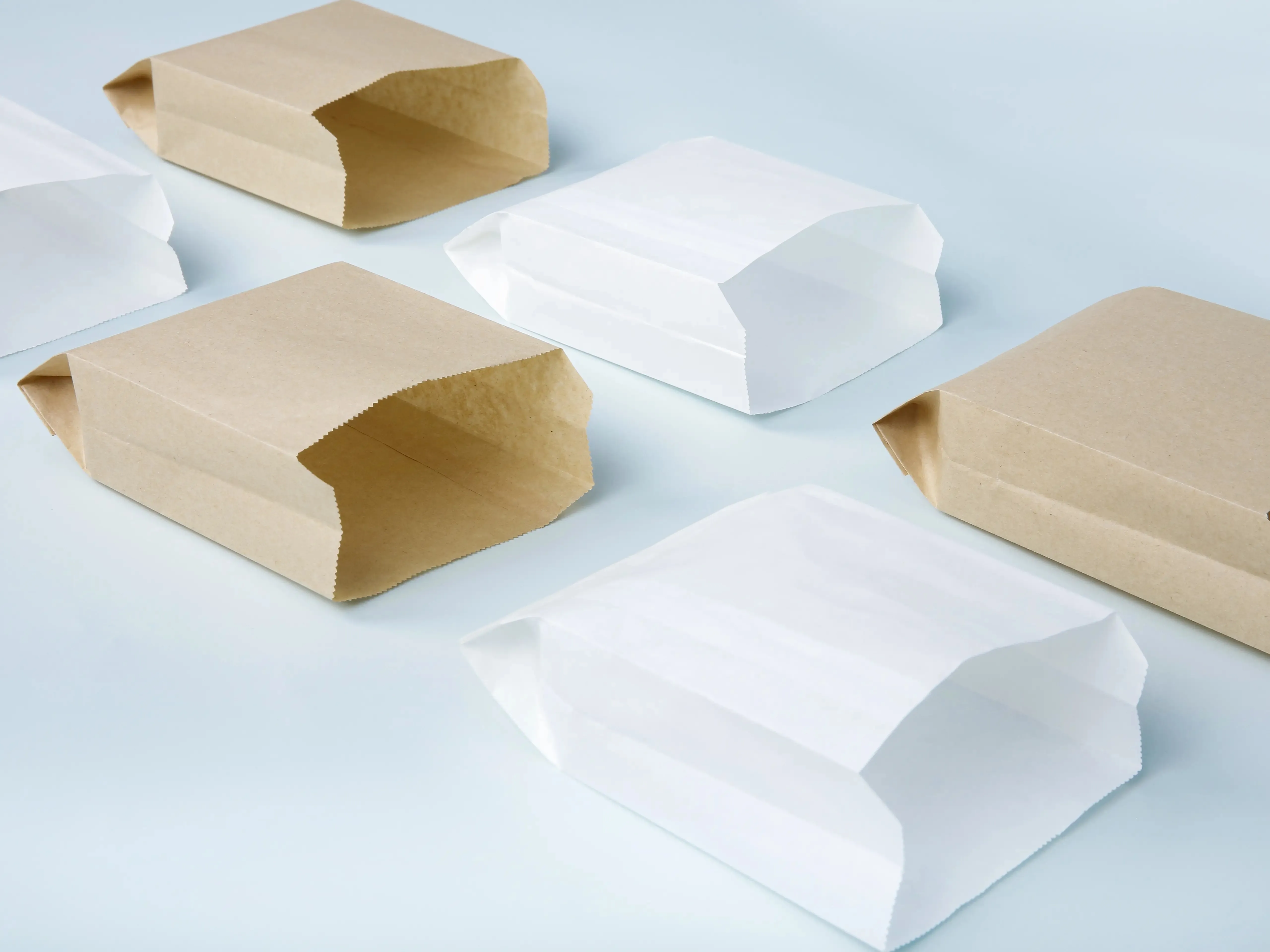

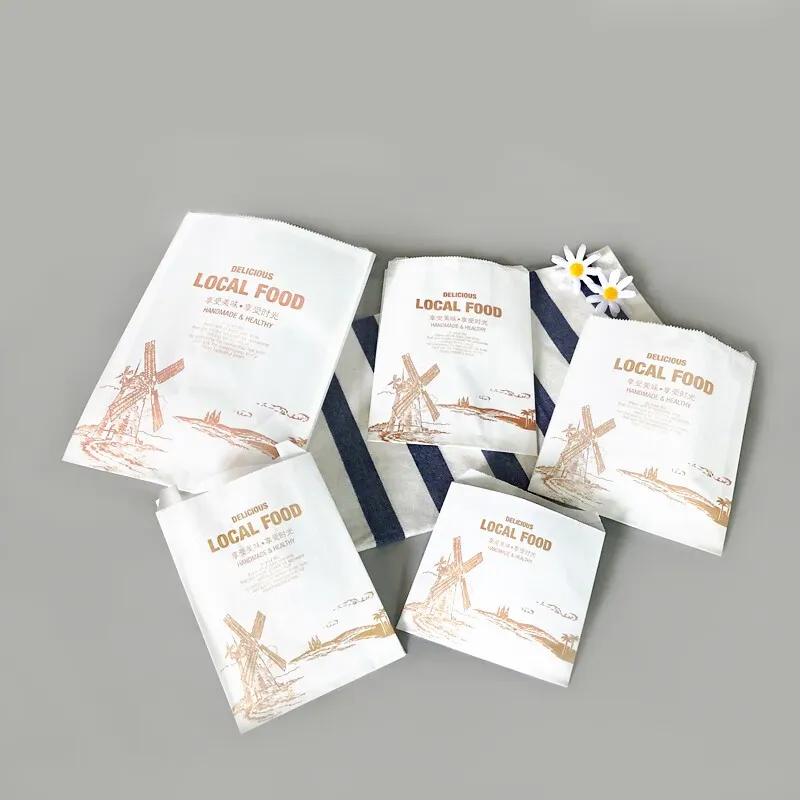

Finished Product Display

Our Services

We provide precise, efficient manufacturing and service tailored to customer requirements.

We conduct a 100% inspection before shipment.

We offer a one-year warranty.

We provide 24/7 online customer service. Our engineers are available for on-site commissioning and training.

FAQ:

1、How is the after-sales service? How long does the machine warranty last?

Once you have purchased our machine, we guarantee to provide comprehensive lifetime after-sales service. You can call or email us at any time for any questions about the machine, including maintenance, technical support, training and consulting. Our after-sales team will provide you with attentive service and help you solve any problems or difficulties you encounter when using our machine products. All machines we sell come with a 12 month warranty.

2、What technical support does your company provide?

We provide multiple technical support channels, including phone, online chat, and expatriate personnel. You can find all the information about technical support on our website. We are committed to providing our customers with the best support services and ensuring that all questions receive timely and professional responses.

3、How to purchase products from your company?

You can purchase our products through our company's official website or search for our authorized agents in the market. If you encounter any problems during the purchasing process, our team will be available to provide assistance and support at any time.

4、What is your delivery time?

Usually delivered within 30 days. But it depends on the order and machine model.

5、How long can your machine work continuously?

What is the productivity? Is it easy to operate? Our machines can work 24 hours a day. Our machines exceed industry standards for productivity and ease of operation.

Contact us：

If you have a need for producing shopping bags, garbage bags, and roll up bags, you can contact us for free consultation and quotation. Our professional sales team is always ready to assist you and provide you with a comprehensive solution for plastic bag production.

Product Features：

1. Suitable for all types of paper weighing 40-80gsm

2. Bag length adjustable via human-machine interface

3. Servo PLC controls bag length within a specified range

4. Precise color mark tracking system

5. Bag cutting with a toothed knife

6. Ink scraping with a closed-loop scraper system

7. Ceramic anilox roller for ink transfer, ensuring high dot reproduction at high speeds and clear screen printing depth.

Model	RQJD400	RQJD650	RQJD850
Bag Weight	40-80g/m2	40-80g/m2	40-80g/m2
Tube Length	160-450mm	200-650mm	200-850mm
Bag Width	80-250mm	80-300mm	80-350mm
Speed	100-400bags/min	100-400bags/min	100-400bags/min
Weight	2200kg	2400kg	2600kg
Max Paper Roll Width	800mm	900mm	1000mm
Power	4kw	4kw	4kw
Insert Size	20-120mm	20-120mm	20-120mm
Machine Size(L×W×H)	6280x1500x1800mm	6300x1600x1900mm	6500x1700x1900mm

Model	YT-800	YT-1000	YT-1100
Max Width Substrate	800mm	1000mm	1100mm
Max Printing Width	760mm	960mm	1060mm
Range Of Printing Length	228-1000mm	228-1000mm	228-1000mm
Printing Speed	5-100m/min	5-100m/min	5-100m/min
Register Precision	≤±0.20mm	≤±0.20mm	≤±0.20mm
Plate Thickness	2.28mm	2.28mm	2.28mm
Machine Size(LxWxH)	2000x2000x2300mm	2000x2200x2300mm	2000x2400x2300mm

Finished Product Display

Our Services

We provide precise, efficient manufacturing and service tailored to customer requirements.

We conduct a 100% inspection before shipment.

We offer a one-year warranty.

We provide 24/7 online customer service. Our engineers are available for on-site commissioning and training.

FAQ:

1、How is the after-sales service? How long does the machine warranty last?

Once you have purchased our machine, we guarantee to provide comprehensive lifetime after-sales service. You can call or email us at any time for any questions about the machine, including maintenance, technical support, training and consulting. Our after-sales team will provide you with attentive service and help you solve any problems or difficulties you encounter when using our machine products. All machines we sell come with a 12 month warranty.

2、What technical support does your company provide?

We provide multiple technical support channels, including phone, online chat, and expatriate personnel. You can find all the information about technical support on our website. We are committed to providing our customers with the best support services and ensuring that all questions receive timely and professional responses.

3、How to purchase products from your company?

You can purchase our products through our company's official website or search for our authorized agents in the market. If you encounter any problems during the purchasing process, our team will be available to provide assistance and support at any time.

4、What is your delivery time?

Usually delivered within 30 days. But it depends on the order and machine model.

5、How long can your machine work continuously?

What is the productivity? Is it easy to operate? Our machines can work 24 hours a day. Our machines exceed industry standards for productivity and ease of operation.

Contact us：

If you have a need for producing shopping bags, garbage bags, and roll up bags, you can contact us for free consultation and quotation. Our professional sales team is always ready to assist you and provide you with a comprehensive solution for plastic bag production.
